Derale Transmission Cooling Pan GM TH-400 DEEP 14202

Derale Transmission Cooling Pan GM TH-400 DEEP 14202

by Derale
SKU DER-14202
$0.00 - $0.00
$0.00
$465.40
$465.40 - $465.40
$465.40
Availability:
Only 1 left!

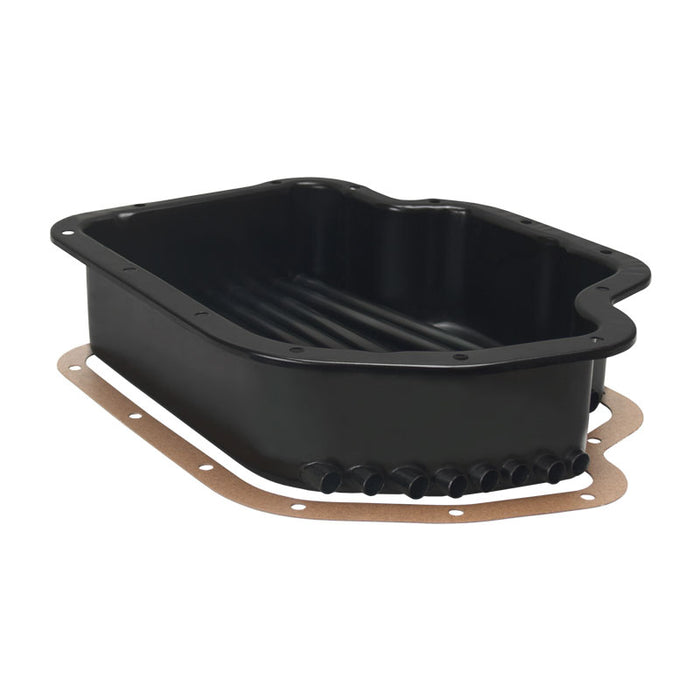

Derale’s TH-400 Deep Transmission Cooling Pan uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures.

With brazed, turbulator-equipped airway tubes passing through the power section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan.

Included is an extra strong magnetic drain plug and rubber/steel reusable washer as well as a 1/8” NPT temperature sender bung located in the side of the pan.

Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8” NPT temperature sender plug.

Specifications

  • Pan depth: 4”
  • Tube depth: 3-1/16”
  • Extra capacity from Std. OE pan: 3 quarts 8 oz
  • Extra capacity from Deep OE pan: 1 quart 3 oz
  • Temp bung size: 1/8” NPT

Features

  • Heavy gauge stamped steel construction
  • Two stage heat dissipating black finish
  • 1/8” NPT temperature sender port
  • Reduces fluid temperatures 20-50ºF
  • Increases fluid capacity by up to 3 quarts 8 oz
  • Patented turbulator cooling tubes add heat transfer capability
  • Magnetic drain plug with increased magnetic strength and rubber/steel washer
  • Pan depth: 4”

Part Number: DER-14202
