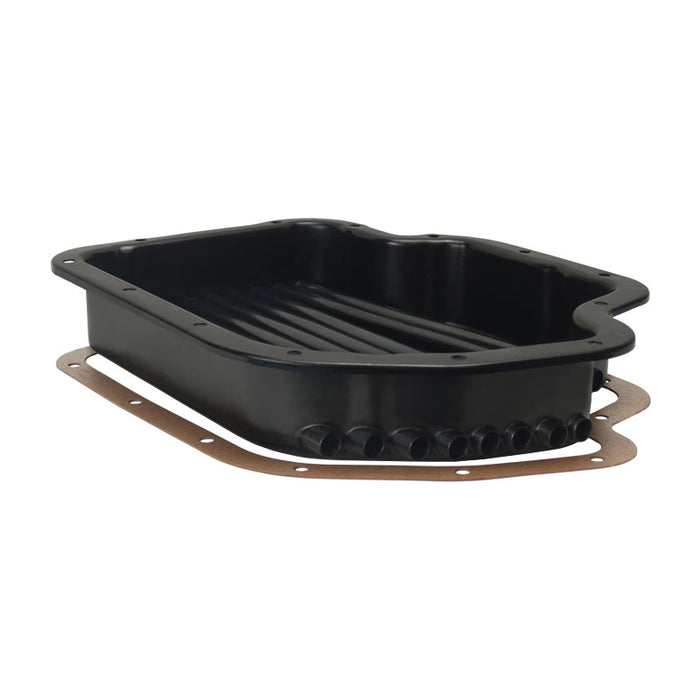

Derale Transmission Cooling Pan GM TH-400 Standard Depth 14201
Derale’s TH-400 Transmission Cooling Pan uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures.
With brazed, turbulator-equipped airway tubes passing through the power section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan.
Included is an extra strong magnetic drain plug and rubber/steel reusable washer as well as a 1/8” NPT temperature sender bung located in the side of the pan.
Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8” NPT temperature sender plug.
Specifications
- Pan depth: 2-7/8”
- Tube depth: 2”
- Extra capacity: 3 quarts 8 oz
- Temp bung size: 1/8” NPT
Features
- Heavy gauge stamped steel construction
- Two stage heat dissipating black finish
- 1/8” NPT temperature sender port
- Reduces fluid temperatures 20-50ºF
- Increases fluid capacity by 3 quarts 8 oz
- Patented turbulator cooling tubes add heat transfer capability
- Magnetic drain plug with increased magnetic strength and rubber/steel washer
- Pan depth: 2-7/8”
