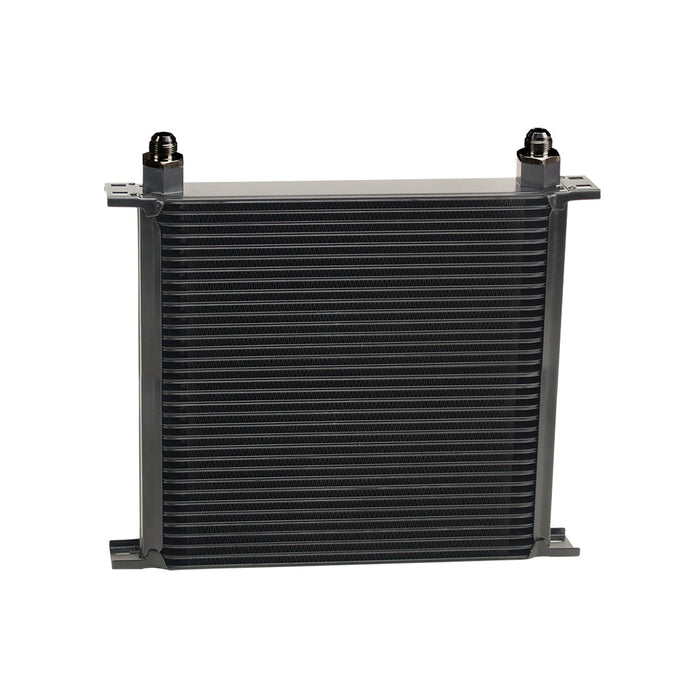

Derale 34 Row Series 10000 Stack Plate Cooler, -8AN 53408

Derale 34 Row Series 10000 Stack Plate Cooler, -8AN 53408

by Derale
SKU DER-53408
$649.70 - $649.70
$649.70
$649.70 - $649.70
$649.70
Availability:
Only 1 left!

Derale's most efficient heat exchanger, the all aluminum 34 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum -8AN male adapter fittings.

Features

  • Designed for engine and transmission cooling
  • Most efficient heat exchangers available
  • Furnace brazed aluminum construction with 4 integrated mounting brackets
  • 34 row cooler design
  • Male -8AN aluminum O-ring inlet fittings
  • 59,000 BTU's Per Hour

Specifications

  • Cooler style: Stack Plate
  • Construction: Aluminum
  • Inlet size: -10AN o-ring female x -6AN male
  • Width: 13"
  • Height: 11-7/8"
  • Depth: 2"
  • Inlet dim: 10"
  • Mounting: 12-1/4" x 10-1/16"
  • 59,000 BTU's Per Hour
  • Fluid Capacity:20oz
