Derale 40 Row Series 10000 Stack Plate Cooler, -8AN 54008

Derale 40 Row Series 10000 Stack Plate Cooler, -8AN 54008

by Derale
SKU DER-54008
$723.70 - $723.70
$723.70
$723.70 - $723.70
$723.70
Availability:
Only 1 left!

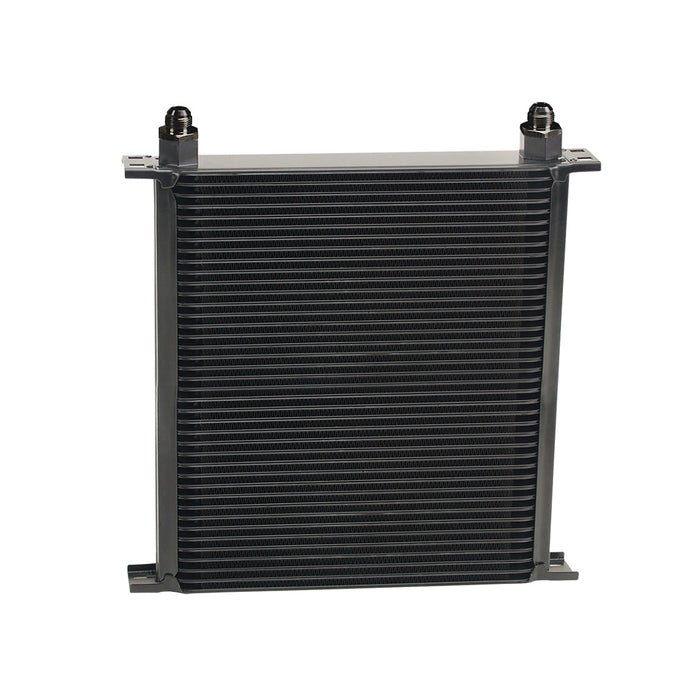

Derale's most efficient heat exchanger, the all aluminum 40 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes aluminum -8AN male adapter fittings.

Specifications

  • Cooler style: Stack Plate
  • Construction: Aluminum
  • Inlet size: -10AN o-ring female x -10AN male
  • Width: 13"
  • Height: 13 3/4"
  • Depth: 2"
  • Inlet dim: 10"
  • Mounting: 12 1/4" x 12"
  • 26oz additional fluid capacity

Features

  • Designed for engine and transmission cooling
  • Furnace brazed aluminum construction with 4 integrated mounting brackets
  • High efficiency Stacked Plate 40 row cooler
  • Male -8AN aluminum O-ring inlet fittings
  • 67,000 BTU's Per Hour
  • Derale coolers are rated at 250psi working pressure and 300psi burst strength
