Derale 10'' High Output Curved Blade IP68 Electric Puller Fan - DER-16110

Derale 10'' High Output Curved Blade IP68 Electric Puller Fan - DER-16110

by Derale
SKU DER-16110
$0.00 - $0.00
$0.00
$280.79
$280.79 - $280.79
$280.79
Availability:
Only 1 left!

A 10" Diameter version of our high performance H.O. Extreme series of electric fans, this powerful unit uses 10 thin, curved blades to provide a low profile (only 2 1/16" at widest point) for limited space applications. Using a sealed IP68 certified waterproof & dustproof motor that lasts up to 3 times longer than normal electric fan motors, this puller fan is designed to provide maximum performance at high static pressure loads. Mounting kit and installation instructions included.



Features:

  • Primary cooling fan eliminates fuel and horsepower robbing belt driven fans
  • 10 thin curved blades allow ultra low profile design for limited space applications
  • Sealed waterproof/dustproof IP68 certified motors
  • Ultra quiet S-blade designs
  • Designed for maximum performance at high static pressure loads for more effective cooling
  • Long lasting, sealed IP68 certified waterproof & dustproof motor
  • 825 CFM

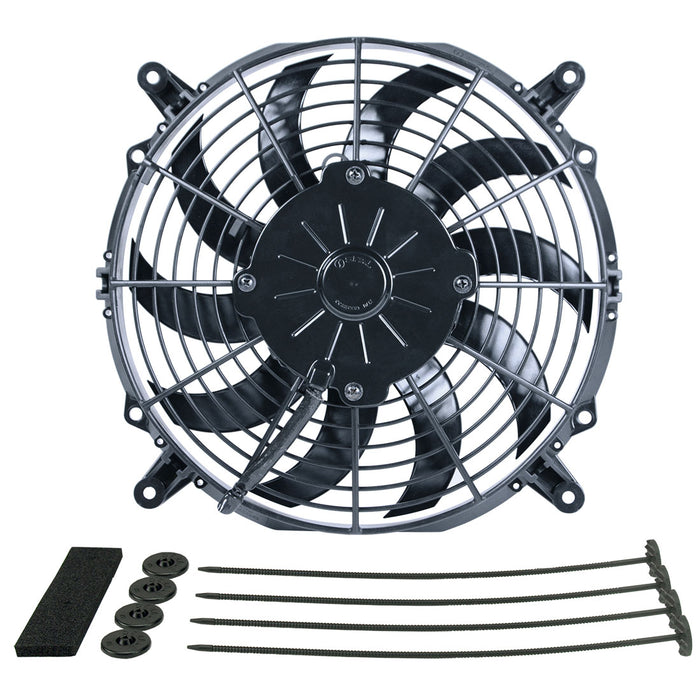

  • Includes mounting kit and illustrated installation instructions
  • Puller only (engine side)



Specifications:

  • CFM fan: 825
  • Amp draw: 9.2
  • Width: 10-1/2"
  • Height: 11-1/8"
  • Depth: 1-1/16"
  • Overall Depth: 2-1/16"
  • Mounting: 9" x 9"
