Derale 12" High Output Curved Blade IP68 Electric Puller Fan - DER-16112

Derale 12" High Output Curved Blade IP68 Electric Puller Fan - DER-16112

by Derale
SKU DER-16112
$0.00 - $0.00
$0.00
$358.65
$358.65 - $358.65
$358.65
Availability:
Only 1 left!

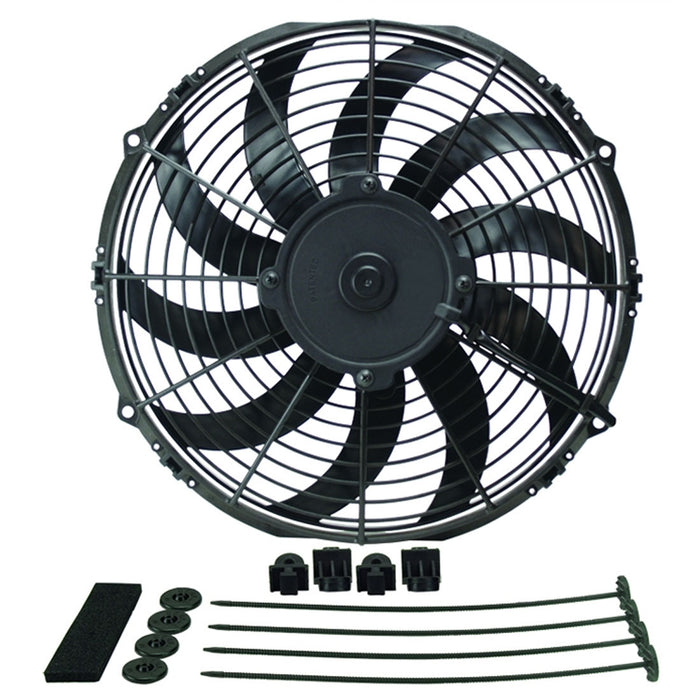

A 12" Diameter version of Derale's high performance H.O. Extreme series of electric fans, this powerful unit uses 10 thin, curved blades to provide a low profile (only 2 7/16" at widest point) for limited space applications. Using a sealed IP68 certified waterproof & dustproof motor that lasts up to 3 times longer than normal electric fan motors, this puller fan is designed to provide maximum performance at high static pressure loads. Mounting kit and installation instructions included.



Features:

  • Primary cooling fan eliminates fuel and horsepower robbing belt driven fans
  • 10 thin curved blades allow ultra low profile design for limited space applications
  • Designed for maximum performance at high static pressure loads for more effective cooling.
  • Long lasting, sealed IP68 certified waterproof & dustproof motor
  • 1328 CFM
  • Includes mounting kit and illustrated installation instructions
  • Puller only (engine side)

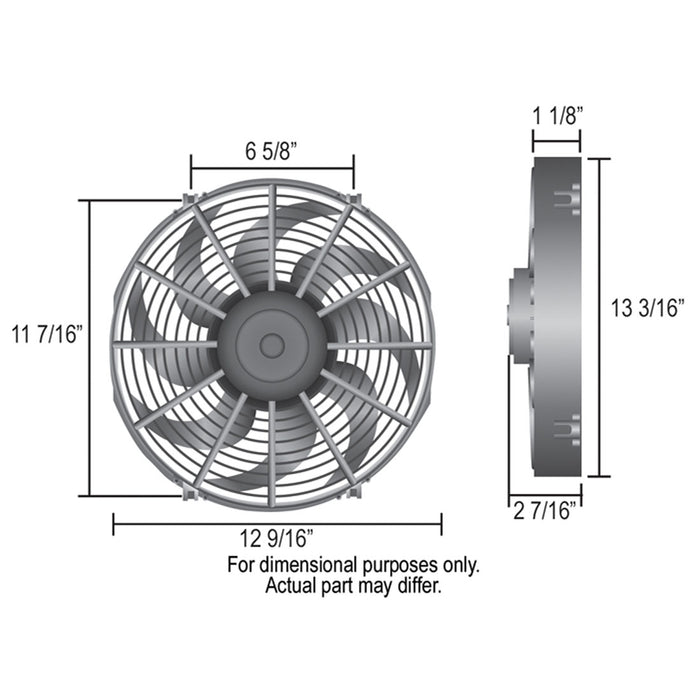

Specifications:

  • CFM fan: 1328
  • Amp draw: 14.2
  • Width: 12-9/16"
  • Height: 13-3/16"
  • Depth: 1-1/8"
  • Overall Depth: 2-7/16"
  • Mounting: 11-7/16" x 6-5/8"
