Derale 14" High Output Curved Blade IP68 Electric Puller Fan - DER-16114

Derale 14" High Output Curved Blade IP68 Electric Puller Fan - DER-16114

by Derale
SKU DER-16114
$0.00 - $0.00
$0.00
$462.95
$462.95 - $462.95
$462.95
Availability:
Only 1 left!

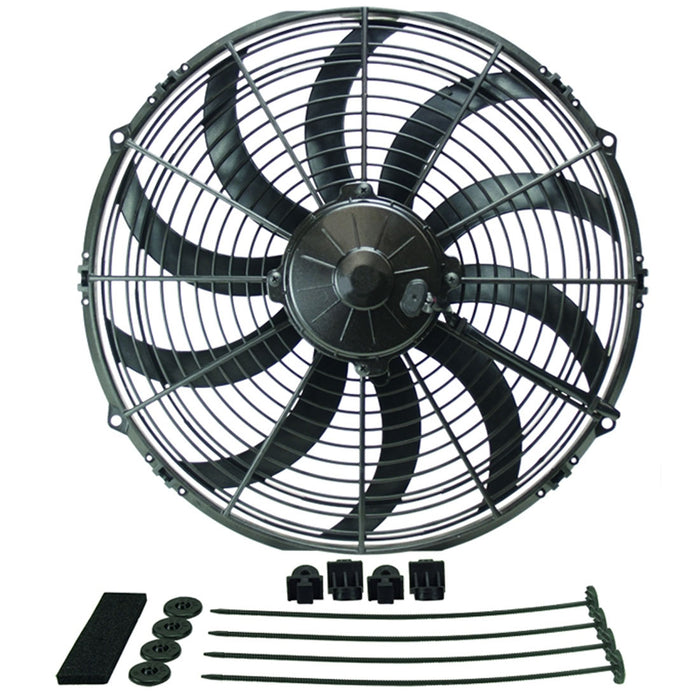

A 14" Diameter version of Derale's high performance H.O. Extreme series of electric fans, this powerful unit uses 10 thin, curved blades to provide a low profile (only 3 7/16" at widest point) for limited space applications. Using a sealed IP68 certified waterproof & dustproof motor that lasts up to 3 times longer than normal electric fan motors, this puller fan is designed to provide maximum performance at high static pressure loads. Mounting kit and installation instructions included.



Features:

  • Primary cooling fan eliminates fuel and horsepower robbing belt driven fans
  • 10 thin curved blades allow ultra low profile design for limited space applications
  • Designed for maximum performance at high static pressure loads for more effective cooling.
  • Long lasting, sealed IP68 certified waterproof & dustproof motor
  • 1864 CFM
  • Amp draw: 21.5 amps
  • Includes mounting kit and illustrated installation instructions
  • Puller only (engine side)



Specifications:

  • CFM fan: 1864
  • Amp draw: 21.5
  • Width: 14-7/16"
  • Height: 15-1/16"
  • Depth: 1-1/8"
  • Overall Depth: 3-7/16"
  • Mounting: 13-1/16" x 7-9/16"
