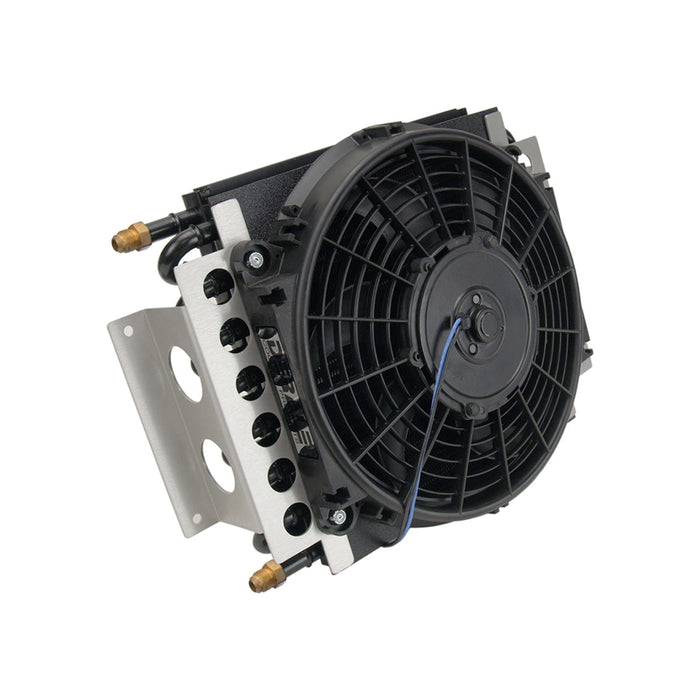

Derale 16 Pass Electra-Cool Remote Transmission Cooler Kit, -6AN Inlets 13900

With it's own air supply, the Electra-Cool Remote Transcooler can literally be mounted wherever space permits, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16 pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, this kit comes with a complete installation kit to install easily on all vehicles with 5/16" or 3/8" transmission cooler lines. Also included is an 180°F in-line thermostat for activating the electric fan. This is a durable, trouble-free way to add years to the life of your transmission, and perfect for medium to heavy-duty towing and hauling.

Specifications

• Cooler style: 16 pass Tube & Fin
• Inlet size: -6AN
• Fan size: 10"
• CFM: 650
• Amp draw: 5.3

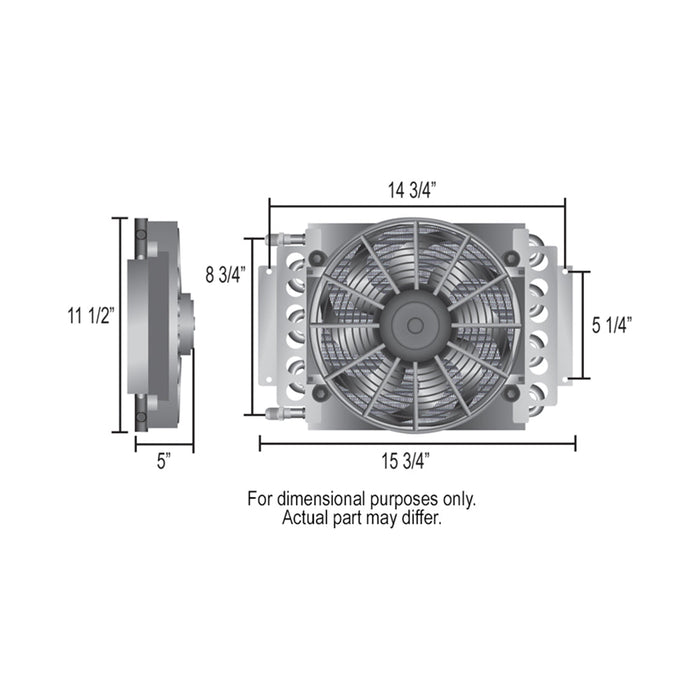

• Width: 15-3/4"
• Height: 11-1/2"
• Depth: 5"
• Inlet dim: 8-3/4"
• Mounting: 14-3/4" x 5-1/4"
• Cooler Fluid Capacity: 19.6 oz
• 14,000 BTU/ Hr
• Hose size: 3/8"
• Hose length: 10'
• Airflow: Puller (reversible)

Features

• Mounts anywhere space permits
• Electric fan supplies optimum airflow
• Dramatically extends engine and transmission life
• 16 pass Tube & Fin cooler
• Clear anodized aluminum shroud
• 650 CFM reversible Tornado electric fan
• -6AN inlet size
• Derale coolers are rated at 250psi working pressure and 300psi burst strength
• Transmission cooler kit includes fan mounted cooler, two -6AN to 3/8" barbed hose fittings, 180°F In-line thermostat, 10 ft. of OEM spec hose, 5/16" and 3/8" compression fittings, and hardware.
