Derale 19 Row Series 10000 Stack Plate Cooler, -8AN 51908

Derale 19 Row Series 10000 Stack Plate Cooler, -8AN 51908

by Derale
SKU DER-51908
Sold out
$439.70 - $439.70
$439.70
$439.70 - $439.70
$439.70
Availability:
Out of stock

Derale's most efficient heat exchanger, the all aluminum 19 row Stacked Plate cooler features sturdy furnace brazed construction, full 2" deep turbulator-equipped plates and a black powder coat finish. With minimal pressure drop it can be used for engine, transmission or fuel cooling. Includes bright aluminum anodized finished -8AN male adapter fittings.

Features

  • Designed for engine and transmission cooling
  • Most efficient heat exchangers available
  • Furnace brazed aluminum construction with 4 integrated mounting brackets
  • High efficiency Stacked Plate 19 row cooler
  • Male -8AN aluminum O-ring inlet fittings
  • 37,000 BTU's Per Hour
  • Derale coolers are rated at 250psi working pressure and 300psi burst strength

Specifications

  • Cooler style: Stack Plate
  • Construction: Aluminum
  • Inlet size: -10AN o-ring female x -8AN male

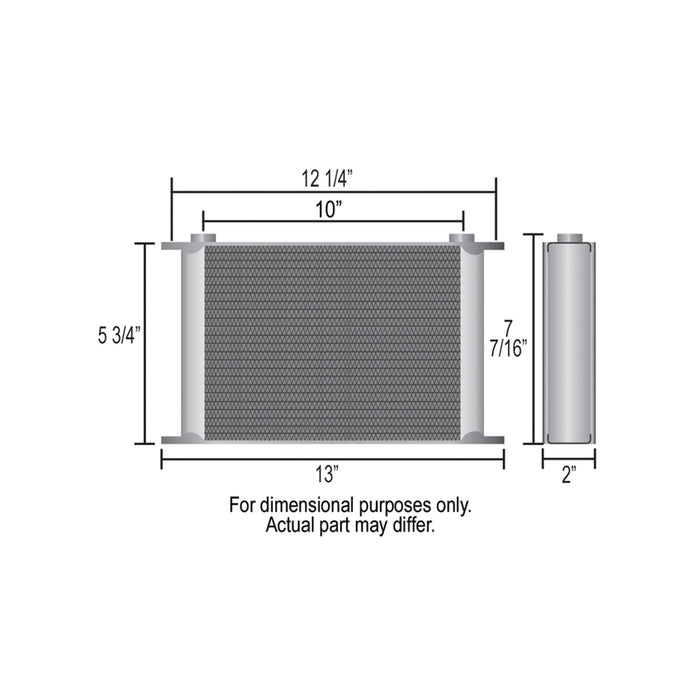

  • Width: 13"
  • Height: 7 7/16"
  • Depth: 2"
  • Inlet dim: 10"
  • Mounting: 12 1/4" x 5 3/4"
  • Fluid Capacity:12oz
