Derale 9 Row Series 8000 Plate & Fin Power Steering Cooler Kit 13215

Derale 9 Row Series 8000 Plate & Fin Power Steering Cooler Kit 13215

by Derale
SKU DER-13215
Sold out
$184.65 - $184.65
$184.65
$184.65 - $184.65
$184.65
Availability:
Out of stock

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop.

Features

  • Embossed turbulators inserted in each tube agitate fluid for maximum heat transfer
  • Sturdy furnace-brazed aluminum construction
  • All Derale coolers are rated at 250psi working pressure and 300psi burst strength
  • 9 row cooler design
  • 3/4" embossed turbulators maximize cooling & minimize pressure drop
  • 11/32" hose barb inlets
  • BTU: 11500

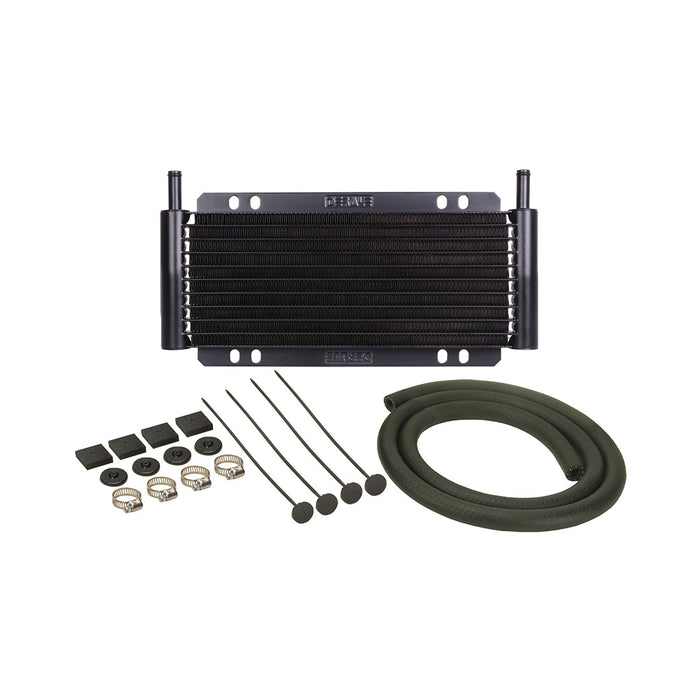

  • Complete hardware kit included
  • Fluid Capacity: 2.5 oz.

Specifications

  • Cooler style: Plate & Fin
  • Construction: Aluminum
  • Inlet size: 11/32" barb
  • BTU: 11500

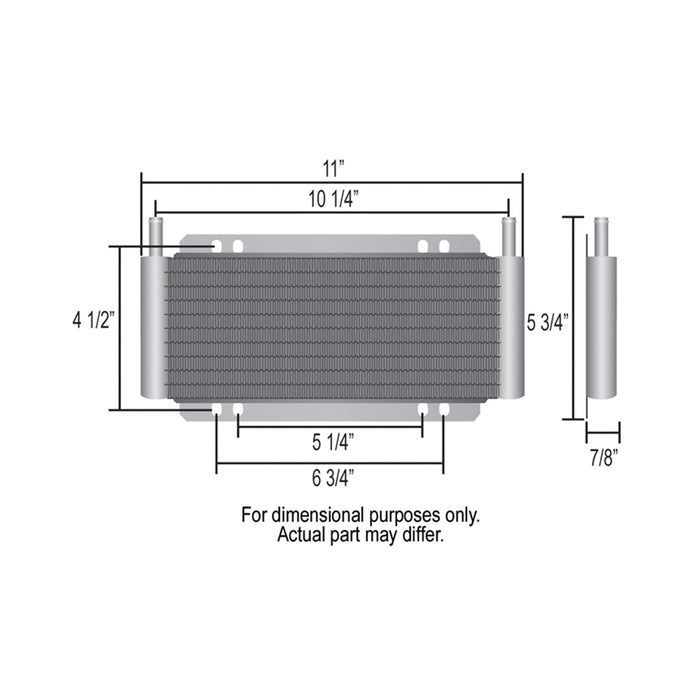

  • Width: 11"
  • Height: 5-3/4"
  • Depth: 7/8"
  • Inlet dim: 10-1/4"
  • Mounting: 6-3/4" x 4-1/2"
  • Hose size: 11/32"
  • Hose length: 4'
