Derale 10 Pass 17'' Series 7000 Copper/Aluminum Transmission Cooler Kit 13105

Derale 10 Pass 17'' Series 7000 Copper/Aluminum Transmission Cooler Kit 13105

by Derale
SKU DER-13105
Sold out
$275.70 - $275.70
$275.70
$275.70 - $275.70
$275.70
Availability:
Out of stock

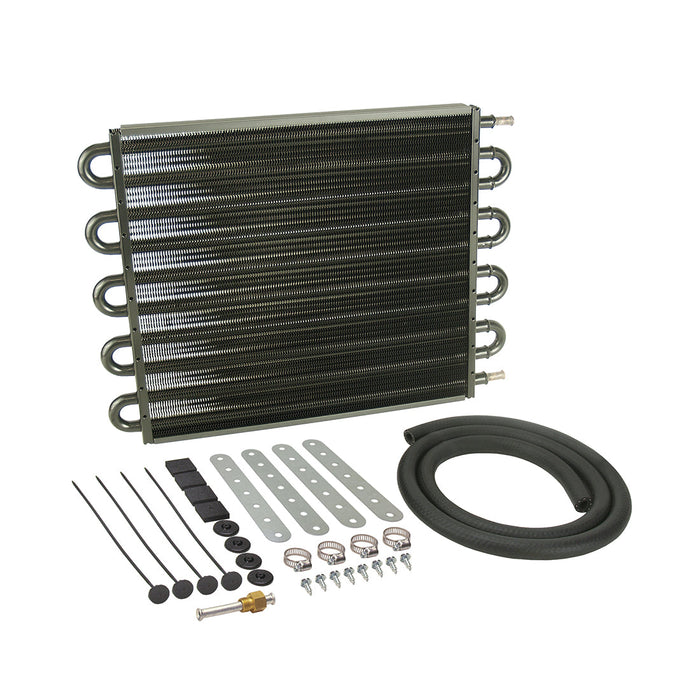

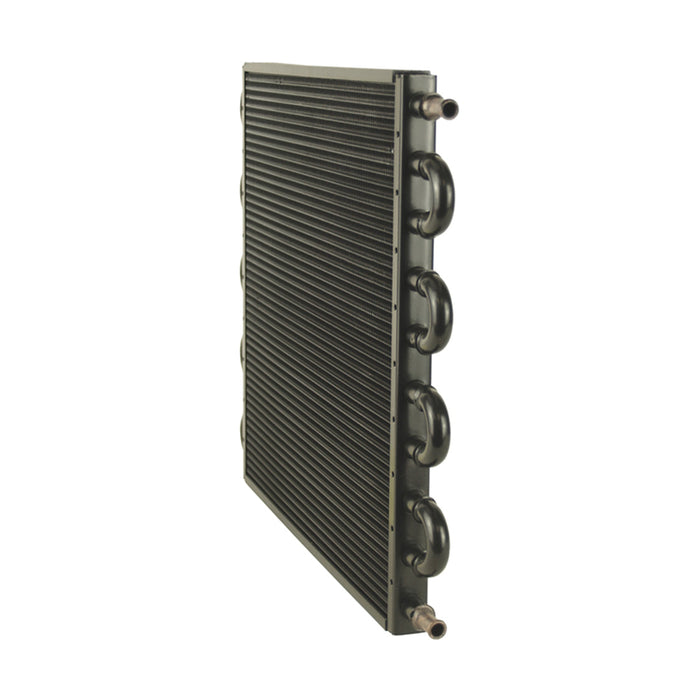

This Tube & Fin transmission cooler features 1/2" copper tubing expanded into aluminum cooling fins. Perfect for full-size trucks and RV's used often for towing and hauling, they improve shifting performance and extend the life of the transmission by eliminating heat-related transmission failures. 11/32" hose barb inlets and complete hardware kit included.

Specifications

  • Cooler style: Tube & Fin
  • Construction: Copper tube and aluminum fin
  • Inlet size: 11/32" barb
  • GVW: 22500

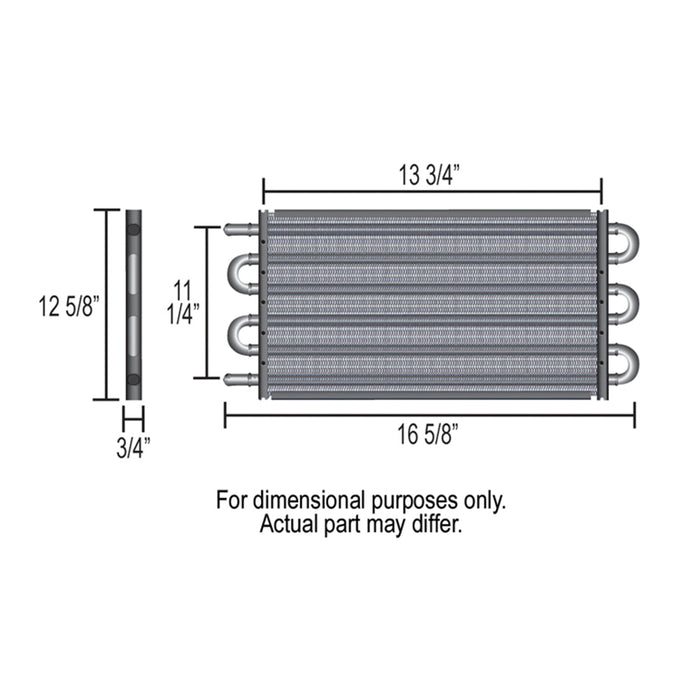

  • Width: 16-5/8"
  • Height: 12-5/8"
  • Depth: 3/4"
  • Inlet dim: 11-1/4"
  • Mounting: 13-3/4"
  • Hose size: 11/32"
  • Hose length: 4'
  • Fluid Capacity:13.5oz
  • 10,000 BTU/Hr

Features

  • Prevents heat related transmission failures
  • Extends life of transmission
  • Improves transmission performance
  • Extruded plastic cooling fin guards
  • 10 pass cooler design
  • 1/2" copper tubing expanded into aluminum cooling fins
  • 11/32" hose barb inlets
  • 22500 GVW rated
  • Complete hardware kit included
