Derale 10 Row Stack Plate Scoop Cooler 7/8"-14 (10AN) Inlet, 50100

Derale 10 Row Stack Plate Scoop Cooler 7/8"-14 (10AN) Inlet, 50100

by Derale
SKU DER-50100
$0.00 - $0.00
$0.00
$402.55
$402.55 - $402.55
$402.55
Availability:
in stock, ready to be shipped

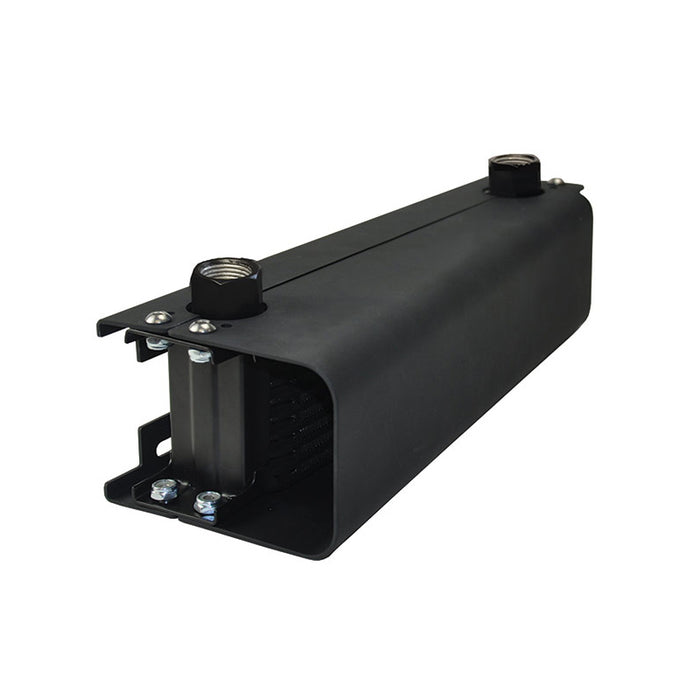

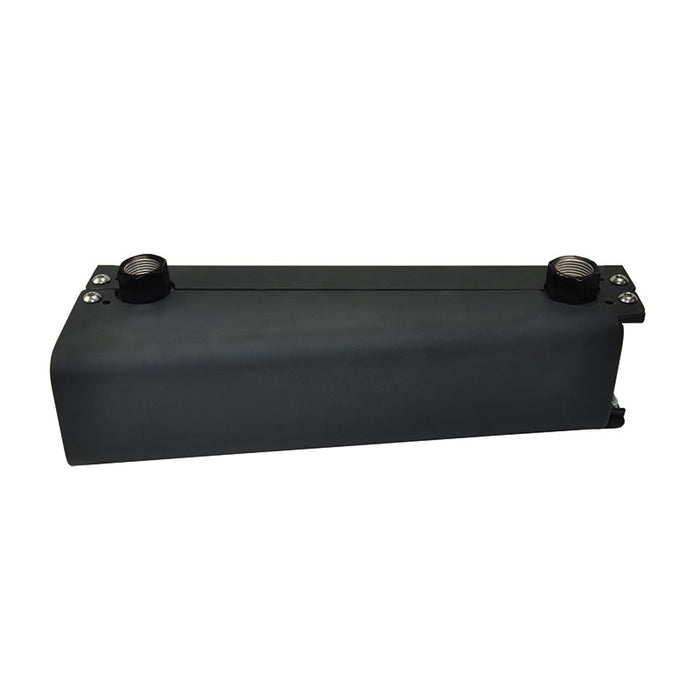

Derale Performance's Scoop Cooler is another industry exclusive, using Ram Air technology to force-feed air to their highly-efficient 10-Row Stack Plate Cooler. As expected from the Derale team, it can be used for a wide variety of cooling needs from engine and transmission to power-steering and fuel. Featuring a unique mounting bracket that sandwiches the cooler and the intake scoop, there are a wide variety of mounting options, all of which are designed to provide a clean, attractive and highly efficient cooler. Do not be fooled by its compact size; Derale's Scoop Cooler is a heavy-duty cooler in every sense of the word, with integrated turbulators running through each row. It's all-aluminum design is lightweight while the furnace-brazed construction is tested to withstand pressures up to 300 p.s.i., and GUARANTEED to 250 p.s.i. Cooler equipped with 7/8"-14 (-10AN) inlet/outlets.

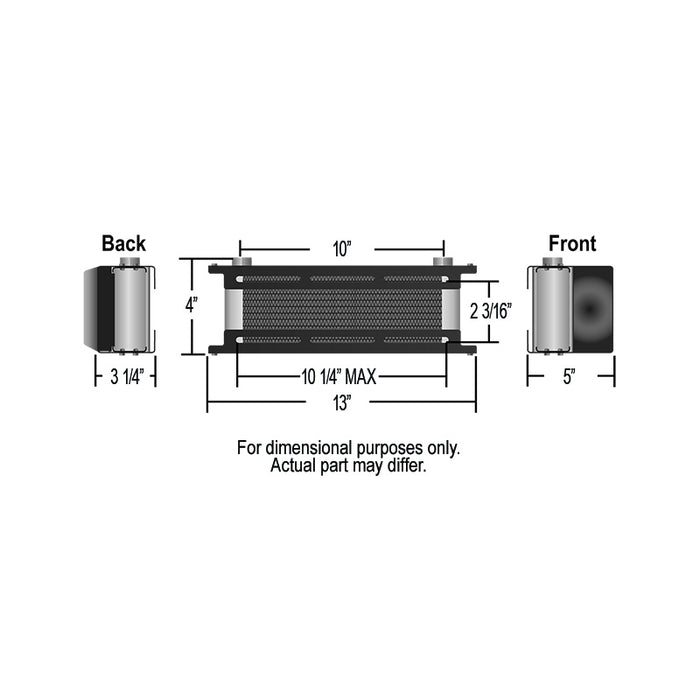

Specifications

  • Cooler style: Stack Plate
  • Construction: Aluminum
  • Width: 13"
  • Height: 4"
  • Depth: 3 1/4" (Back) 5" (Front)
  • Inlet dim: 10"
  • Mounting: 10-1/4 Max x 2-3/16"
  • 20,000 BTU's Per Hour



Features

  • Designed for engine, transmission, power-steering and fuel cooling
  • Unique mounting bracket sandwiches the cooler and the intake scoop
  • Several mounting options
  • Most efficient heat exchangers available
  • Furnace brazed aluminum construction
  • 10 row cooler design
  • 20,000 BTU's Per Hour



Part No: DER-50100
