Carburettor Intake Plenum Hat suits 32/36 DGV AV EV Weber Style Carburettors

• Overall length: 6-3/4"
• Height: 2-9/16"

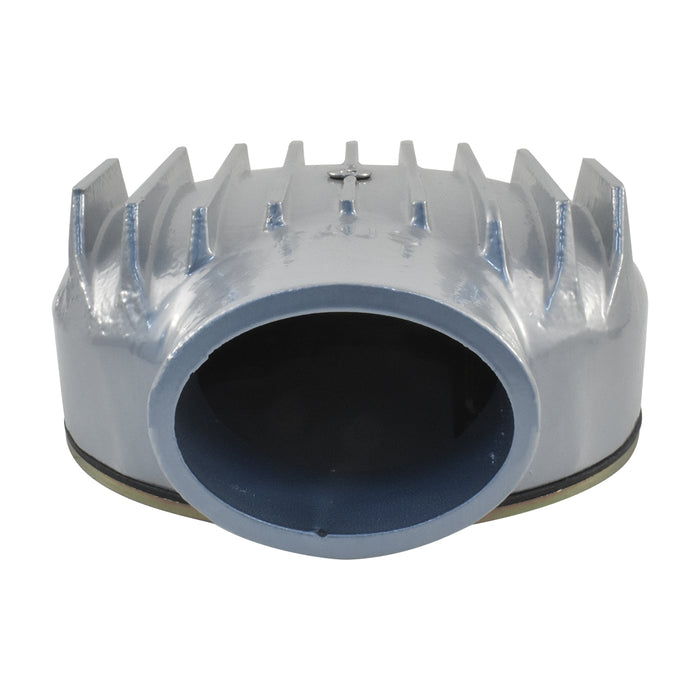

• Intake port: 2-1/2" wide x 1-3/4" high

Application: This plenum hat suits 32/36 DGV, DGAV and DGEV Weber style carburettors, letting the air filter be relocated away from the carburettor itself, useful where bonnet clearance is tight or a remote mount, cold air feed setup is wanted.

Size/Spec Context: The 2-1/2 inch wide by 1-3/4 inch high intake port matches the throat opening of the 32/36 Weber pattern carburettors, so it is purpose sized rather than universal. The 6-3/4 inch overall length and 2-9/16 inch height give clearance for ducting or a remote filter housing to be mounted off to the side.

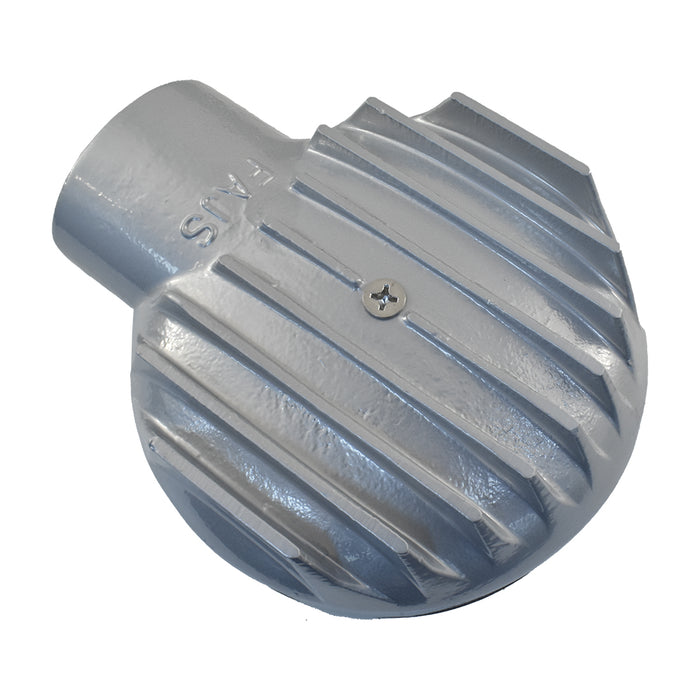

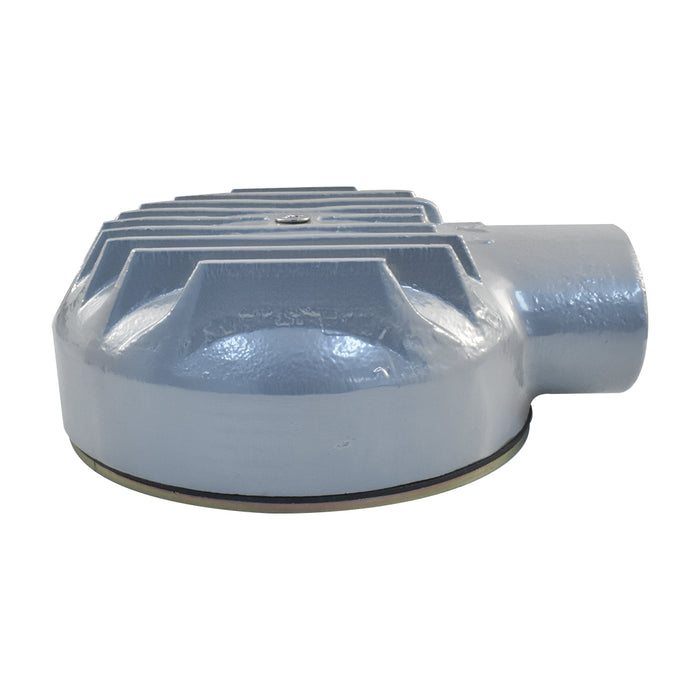

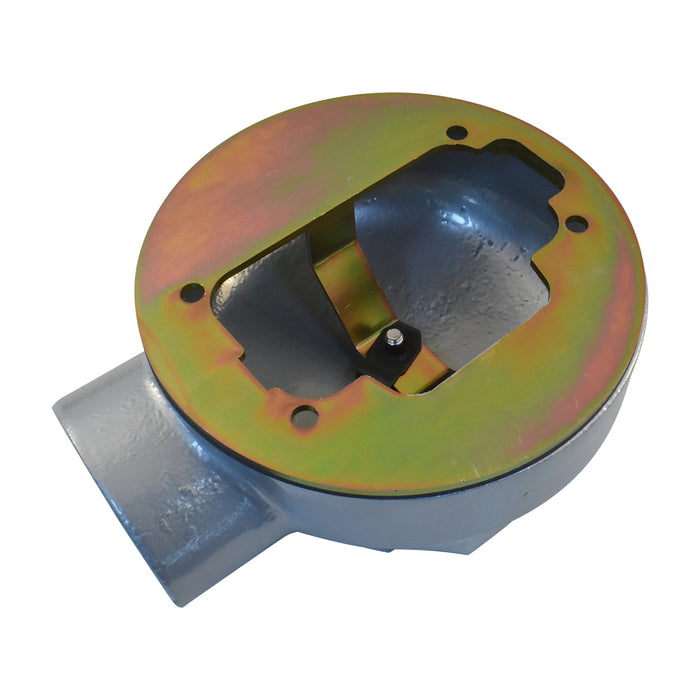

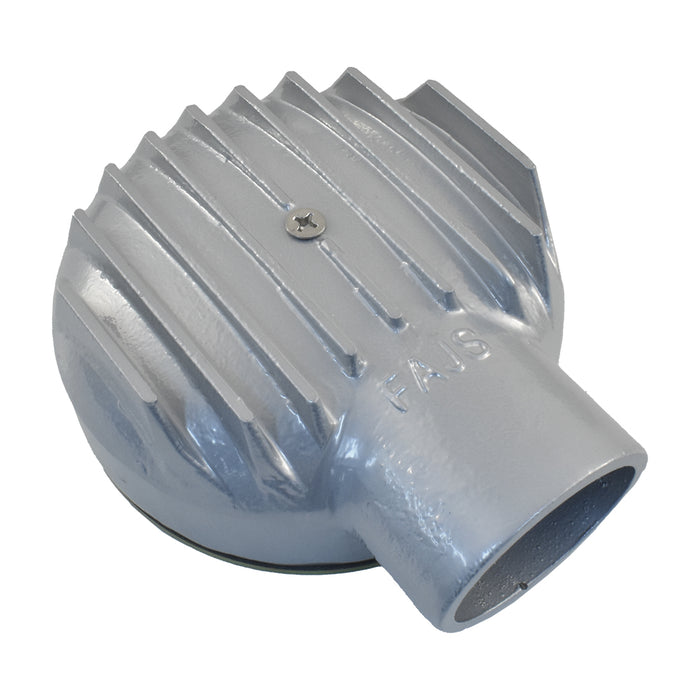

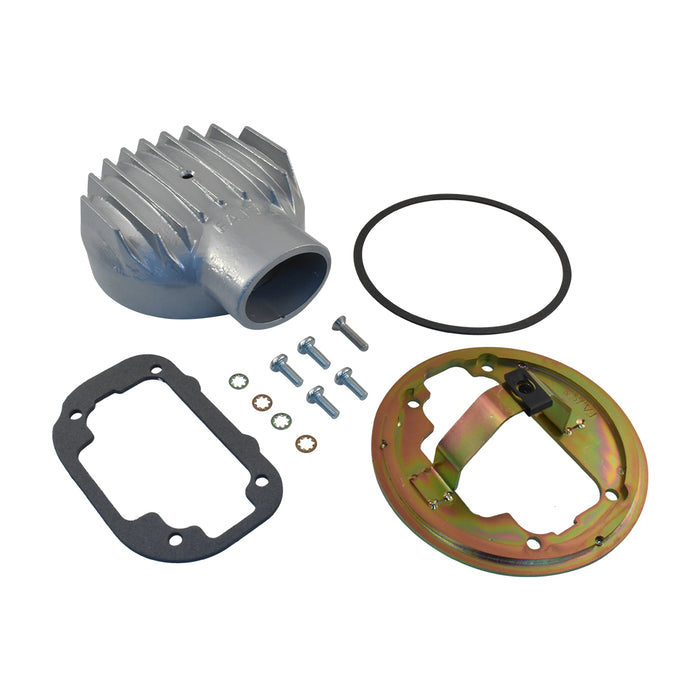

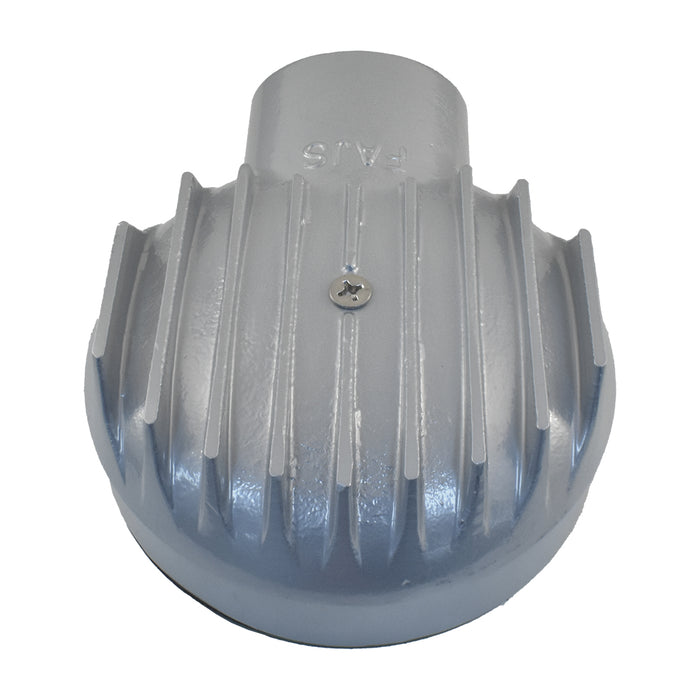

Construction Note: Cast finned aluminium housing on a steel base, with mounting hardware and a base gasket included for a direct bolt-on fit to the carburettor top.

Fitment Note: Designed specifically for 32/36 DGV, DGAV and DGEV Weber style carburettors. Confirm your carburettor matches this pattern before ordering, as it will not suit sidedraft or other Weber variants without the correct intake port dimensions.

What to Pair With: Commonly paired with a remote mount air filter and flexible ducting to complete a relocated intake setup, or with the matching sports air filter assemblies in the Calflow 32/36 range.

Practical Buyer Tip: Since this changes the air filter mounting location, plan your ducting route and filter position before installing so the base gasket seals cleanly against the carburettor top.
