Derale Single Mount 3/8" NPT Ports Up Remote Transmission Filter Kit, Premium 13091

Derale Single Mount 3/8" NPT Ports Up Remote Transmission Filter Kit, Premium 13091

by Derale
SKU DER-13091
$274.15 - $274.15
$274.15
$274.15 - $274.15
$274.15
Availability:
Only 1 left!

Derale's universal remote transmission filter kits enable quick and efficient filter changes and filter out contaminants that pass through OE-screen type filters. The premium version also includes a temperature gauge package with sending unit, mounting brackets and hardware. The increased fluid capacity also cools fluid temperatures helping to extend the life of the transmission.

Features

  • Extends life of transmission
  • Filters out contaminants more efficiently than OE screen type filters
  • Universal - fits all automatic transmissions
  • Increases fluid capacity

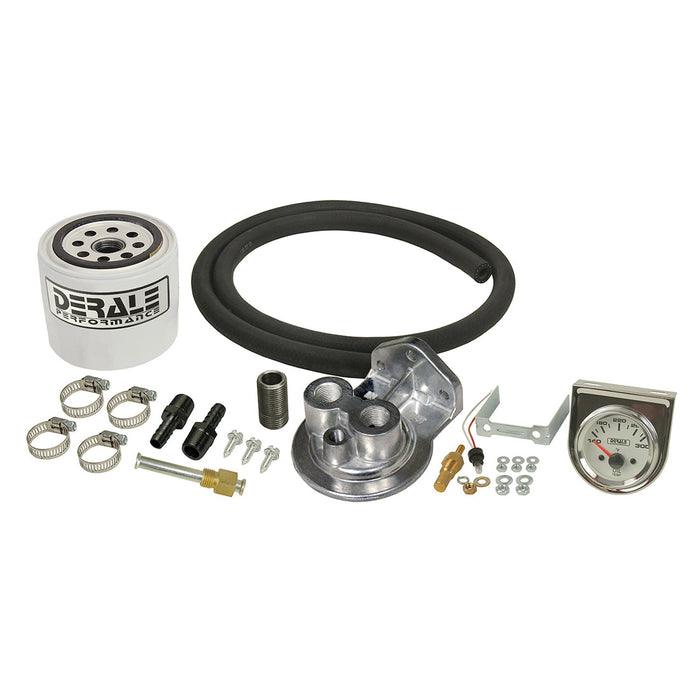

  • Premium kit includes all remote filter mount, premium gauge kit, 4' hose, filter and mounting hardware

Specifications

  • Filter Nominal Micron Rating: 21
  • By-Pass Valve Setting-PSI: 8-11
  • Anti-Drain Back Valve: Yes
  • Burst Pressure-PSI: 340
  • Max Flow Rate: 7-9 GPM
  • Filter Dimensions: 3-1/2" OD x 3-7/8"
  • Filter thread size: 3/4"-16
  • Filter landing: 2-1/2" to 3-1/2"
  • Inlet size: 3/8" NPT
  • Barb size: 3/8"
  • Hose size: 3/8"
  • Hose length: 4'
  • Gauge temperature range: 140-300°F
  • Gauge size: 2-1/16"
  • Sending unit thread size: 1/8" NPT
