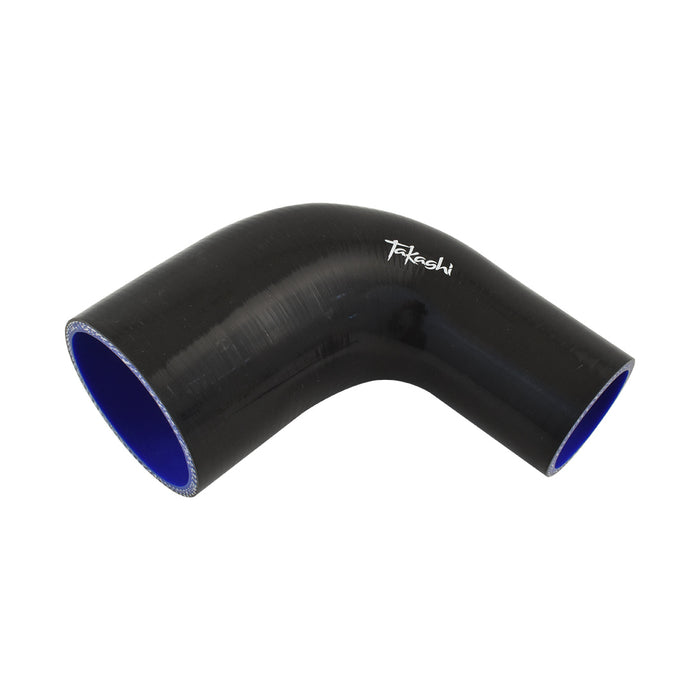

Takashi Black Silicone Hose 90 Degree Reducing Elbow 3" To 2" (76 to 51mm)

Black Silicone
90 Degree Reducing Elbow
3 to 2 Inch I.D. – 5 Inch x 5 Inch Long
76 to 51mm I.D. – 125mm x 125mm Long
Premium Quality – Super Low Prices

• Application: This 90 degree reducing elbow suits turbo and intercooler systems where the charge pipe needs to make a sharp 90 degree turn and step down significantly from 76mm to 51mm in a single fitting. Used on builds where a 3 inch section of charge piping transitions into a smaller 2 inch connection, such as when routing from a mid-size intercooler outlet into a smaller factory or aftermarket intake pipe.

• Size Context: The 76mm to 51mm reduction is a large 25mm step down across a 90 degree turn. This is a significant size change and is used on specific builds where the pipe diameter drops considerably at a direction change point. It eliminates the need for both a separate 90 degree elbow and a separate large-step reducer, reducing the total number of fittings and join points in the system.

• Temperature and Pressure Rating: Rated from -48 degrees C to 260 degrees C with a working pressure of 275 PSI. Handles the sustained heat and boost pressure demands of turbo and intercooler applications without cracking, deforming or collapsing under load.

• Construction Note: 5mm wall thickness with multi-ply silicone reinforcement throughout. Black exterior with no logo for a clean engine bay finish. The blue interior liner is standard Takashi construction and is not a defect.

• Fitment Note: The inlet end connects to pipes with an outside diameter of approximately 76mm and the outlet end connects to pipes with an outside diameter of approximately 51mm. The 25mm difference between the two ends is significant. Measure both connection points on your actual piping carefully before ordering to confirm this is the correct reducing combination for your setup.

• What to Pair With It: Use with a 76mm T-bolt clamp on the inlet end and a 51mm T-bolt clamp on the outlet end. T-bolt clamps are recommended for all boost pressure connections to ensure consistent clamping force at both ends.

• Practical Buyer Tip: A 76mm to 51mm step down is a large reduction and is not a common size combination on standard intercooler kits. Before ordering, confirm both your inlet and outlet pipe OD measurements. If your setup only needs a modest size reduction at this point, check whether a smaller step down such as 76mm to 63mm or 76mm to 70mm would be more appropriate for your build.

Takashi Premium Quality Hand Made Hose - The Very Best Costs Less

Precision manufactured from high grade silicone to ensure outstanding temperature resistance.
Takashi Silicone Hoses are perfect for cooling/heating and charged air applications. They are long lasting and perform brilliantly under extreme conditions.
Takashi Silicone Hoses are an inexpensive and practical performance modification suitable for all types of vehicles.
Takashi Silicone Hose is ideal for motor vehicles and for the serious motorsport enthusiast who wants only the best.
